Terminal Brackets

  • Securely fix the motor roller output shaft on the frame with the special terminal bracket and locking bracket.
  • The output shaft may idle and cause lead disconnection unless fixed properly.
  • The motor roller is supplied with a terminal bracket, a cover and a locking bracket.
Terminal Brackets for ø57/ø60.5

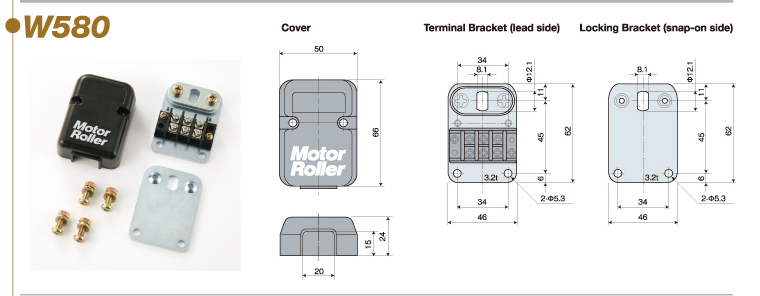

  • W580

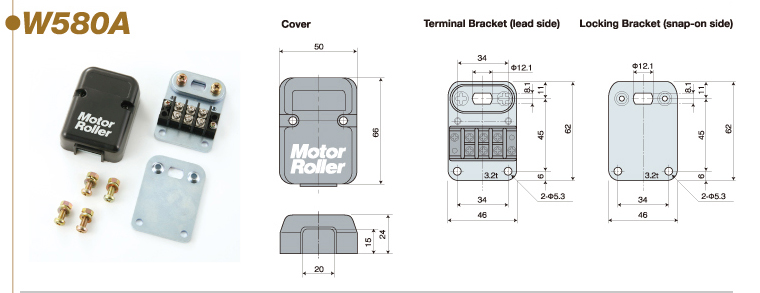

  • W580A

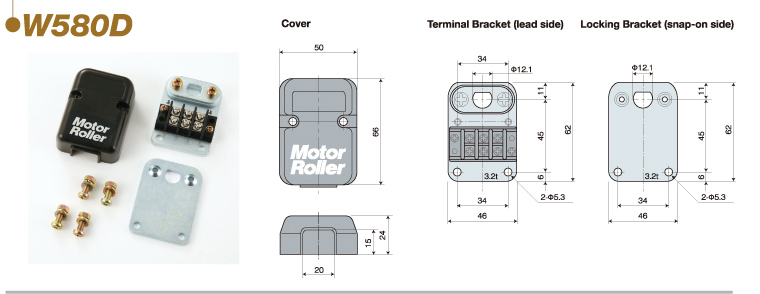

  • W580D
Terminal Brackets for ø42.7/ø48.6/ø50

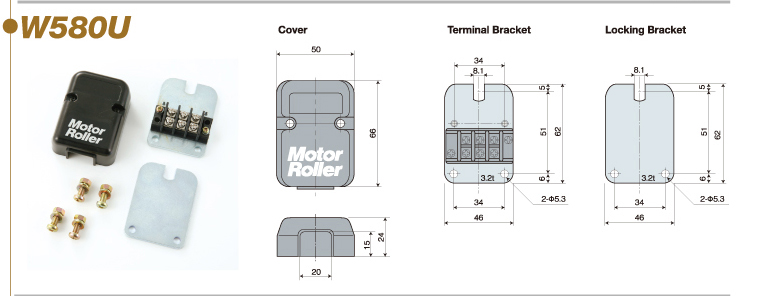

  • W580U

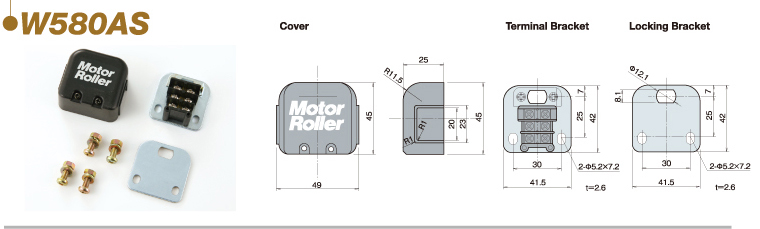

  • W580AS
Brackets for the DC Model

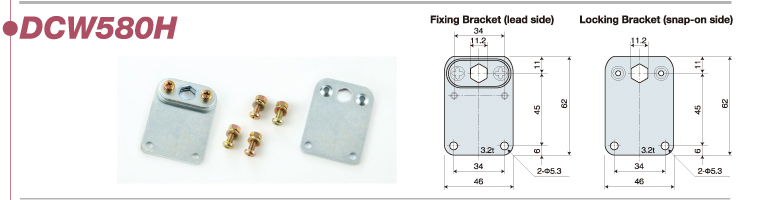

  • DCW580H

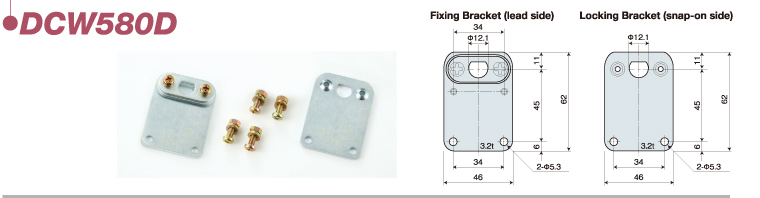

  • DCW580D
