How to Select the Motor Roller Model

The surface speed of a motor roller (conveying speed) varies depending on the weight and material of the item being conveyed and the ambient temperature.

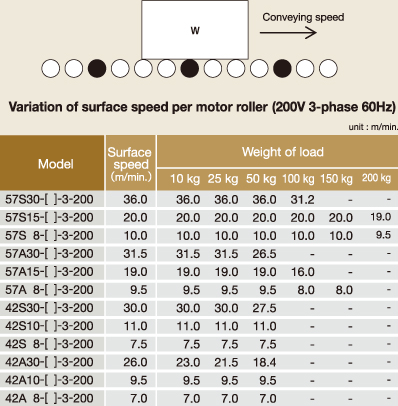

The table below shows measurement data obtained from an experiment under a model condition. When selecting the motor roller model, use the data for reference.

モーターローラー1本による周速度変動(200V三相 60Hz)

Measuring method

200V 60 Hz

Conveying speed variation

The surface speed of a motor roller (conveying speed) varies depending on the weight and material of the item being conveyed.
Refer to the experimental data shown to the right.

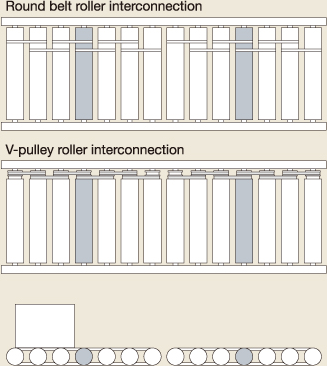

丸ベルトローラー連動/Vプーリーローラー連動

Motor roller conveyor unit

The unit consists of motor rollers and idle rollers which are linked through a special urethane round belt so as to work together. It can start conveying an item with a weight of 25 kg or less and a length of 150 mm or more.

We supply the following products:
Grooved motor rollers (57S, 48S, 42S, 42R5, 42R9, 57R9) Grooved idle rollers
Urethane round belt

The surface speed of a motor roller (conveying speed) varies depending on the weight and material of the item being conveyed. Refer to the experimental data shown below.
